The Ferraz Shawmut 109PV series offers high-quality protection for solar, telecom, UPS and battery systems operating up to 1000VDC. In stock fuse sizes include:

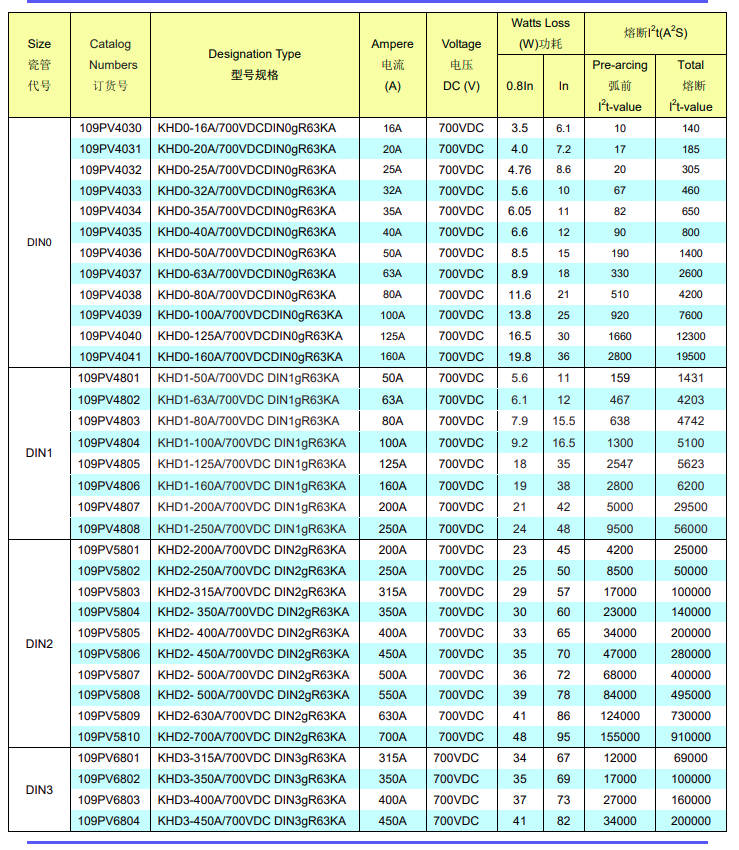

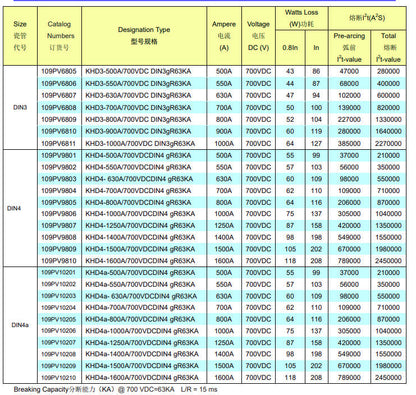

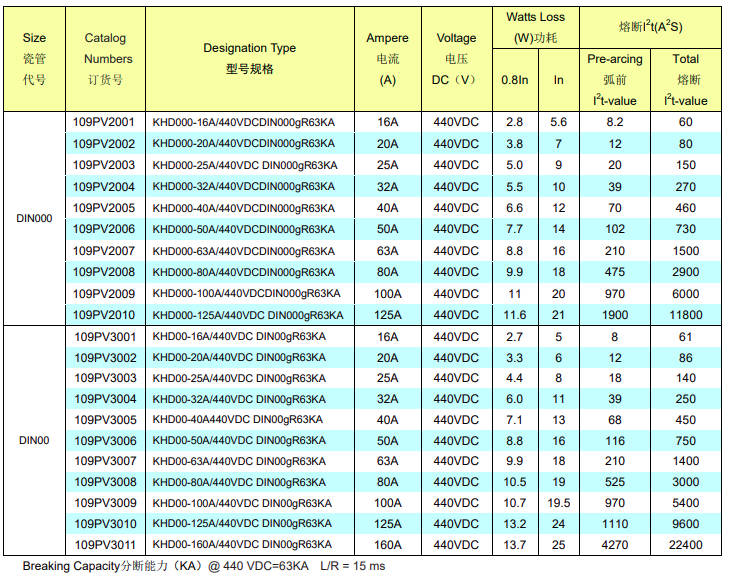

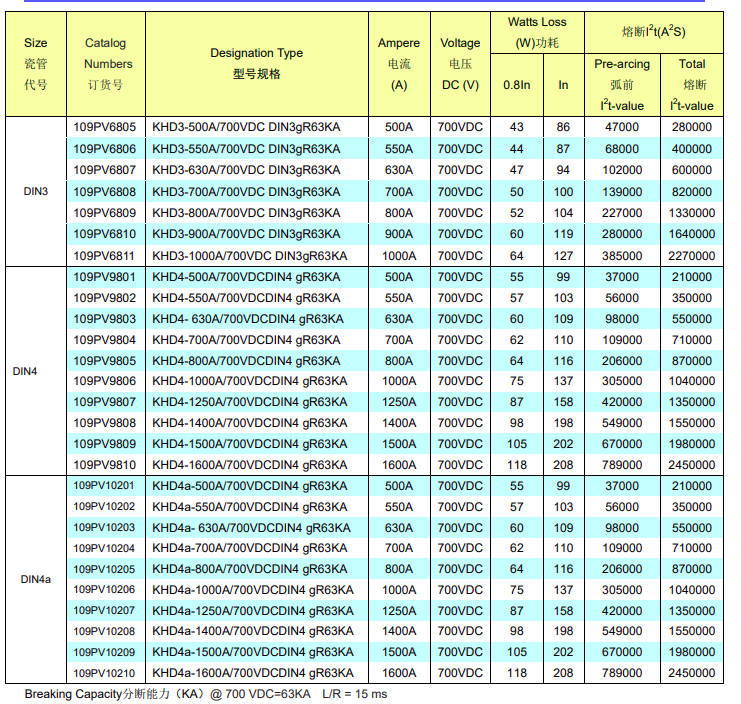

109PV3010 - 125A 1000VDC KHD00 109PV3003 - 25A 1000VDC KHD00 109PV3005 - 50A 1000VDC KHD00 109PV3008 - 80A 1000VDC KHD00 109PV3009 - 100A 1000VDC KHD00 109PV3011 - 160A 1000VDC KHD00 These 12x42mm UL recognized fuses feature epoxy-coated fiberglass tubes to withstand harsh conditions. Fast-acting, high surge withstand for solar inverters, combiners and strings.

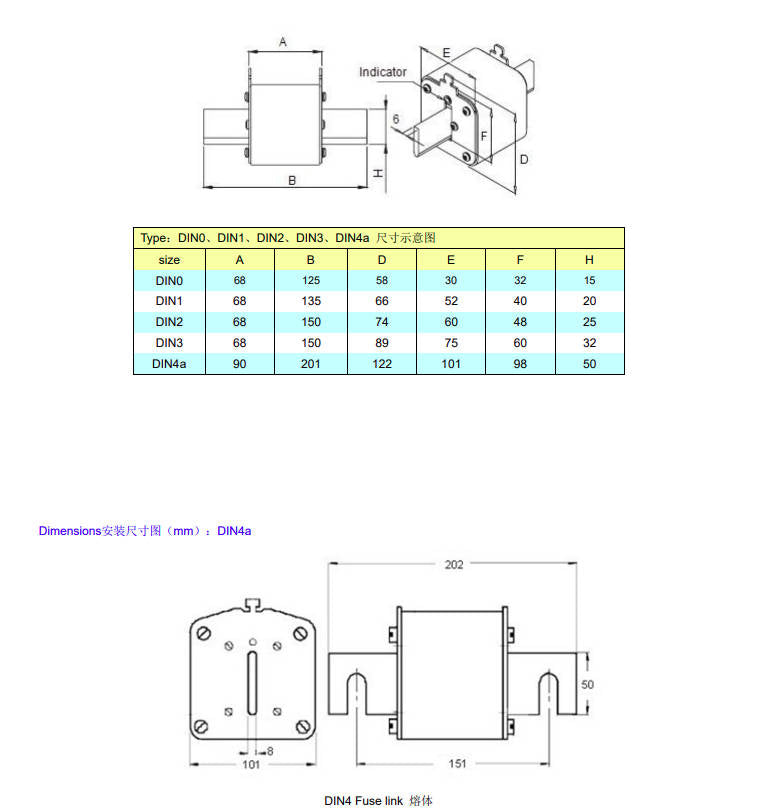

Rated 175kA interrupting at up to 1000VDC for proven performance. Compact dimensions for high density panel applications.
Please contact us for pricing, custom lengths, technical specifications and volume discounts on Ferraz Shawmut's 109PV series DC rated fuses from 25-160A. Our team has extensive expertise supporting DC electric protection requirements.
