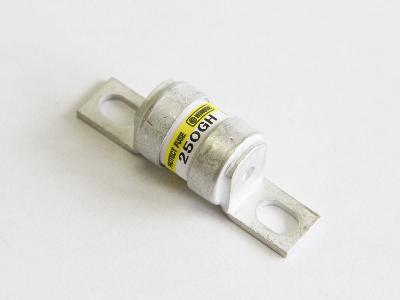

Hinode 200-250A 250V aR Fuses - 250GH-200UL, 250GH-160UL, 250GH-250UL, 250GH-200S, 250GH-250SUL, 250GH-250S

Hinode 250GH-200UL 250GH-200 200A 250V / 250GH-160(UL) 250GH-250(UL) / 250GH-200S 250GH-250SUL 250GH-250S aR Fuses":

Hinode Industrial Grade aR Fuses - Heavy Duty Circuit Protection

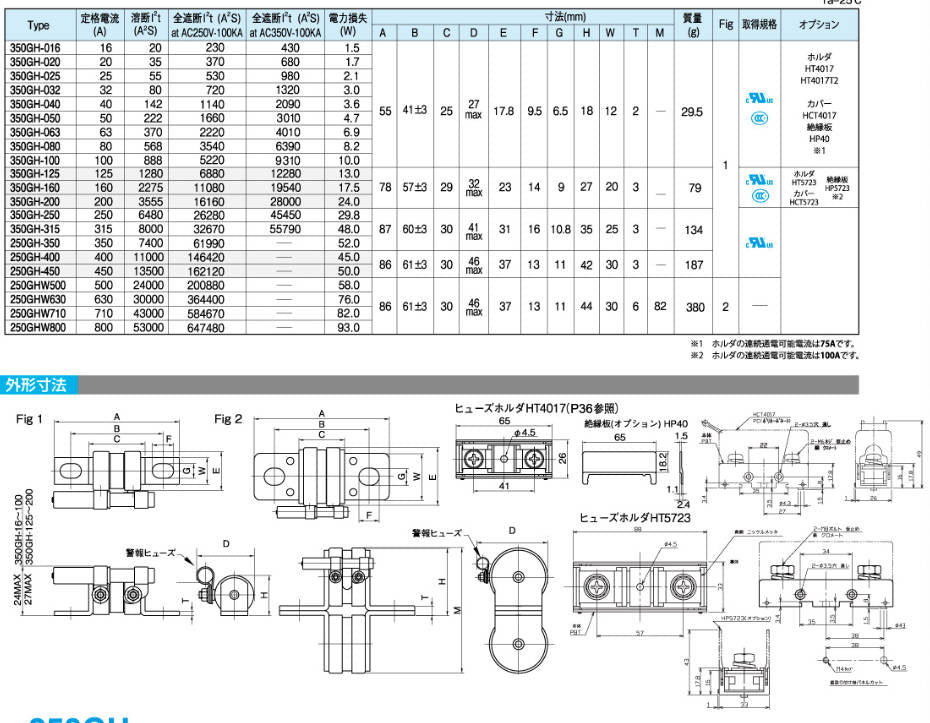

Specifications:

• Voltage Rating: 250V AC
• Current Rating: 160A, 200A, 250A
• Fuse Type: aR (Fast Acting)
• Standards: UL Listed, IEC Certified
• Breaking Capacity: 200kA
• Dimensions: 17.5x60mm, 22x60mm
• Temperature Rating: -40°C to +90°C
• Terminals: Blade Type

Hinode's 250GH series fast-acting aR fuses provide advanced protection for industrial machinery and power distribution systems. With high interrupt ratings up to 200,000A, these UL listed fuses safely isolate faults in circuits up to 250V AC.

Available in 160, 200, and 250 amp ratings, they feature robust blade type terminals to handle high overload currents. The compact housings with 17.5x60mm and 22x60mm dimensions save space in densely packed panels.

An exceptional -40°C to +90°C temperature range allows installation in the most demanding environments. The fast acting fuse element isolates faults quickly before damage occurs.

For critical circuits requiring proven, heavy duty protection, Hinode 250GH aR Fuses deliver unmatched performance. Rely on their stringent safety certifications and extreme breaking capacity to safeguard your equipment.
