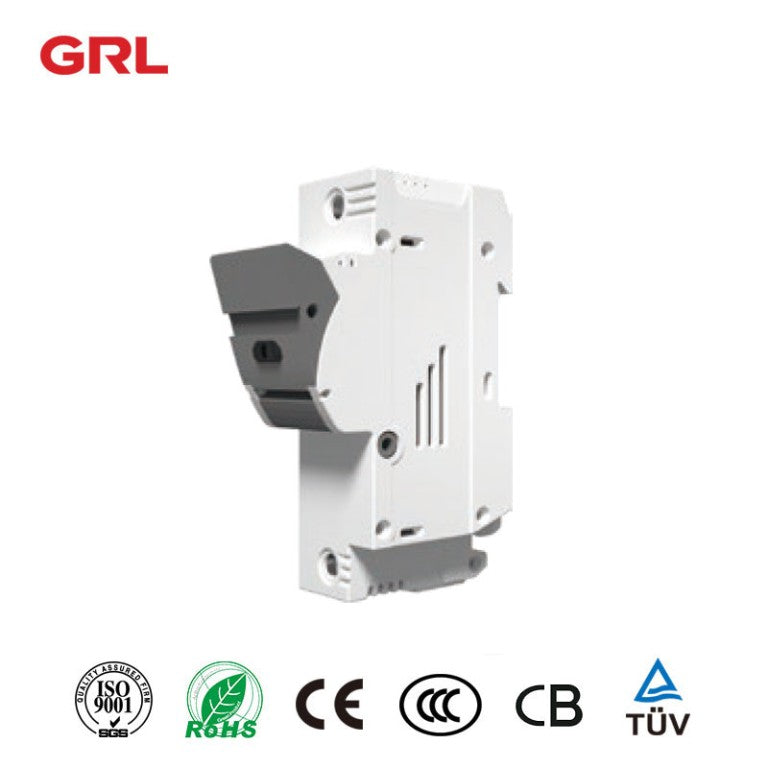

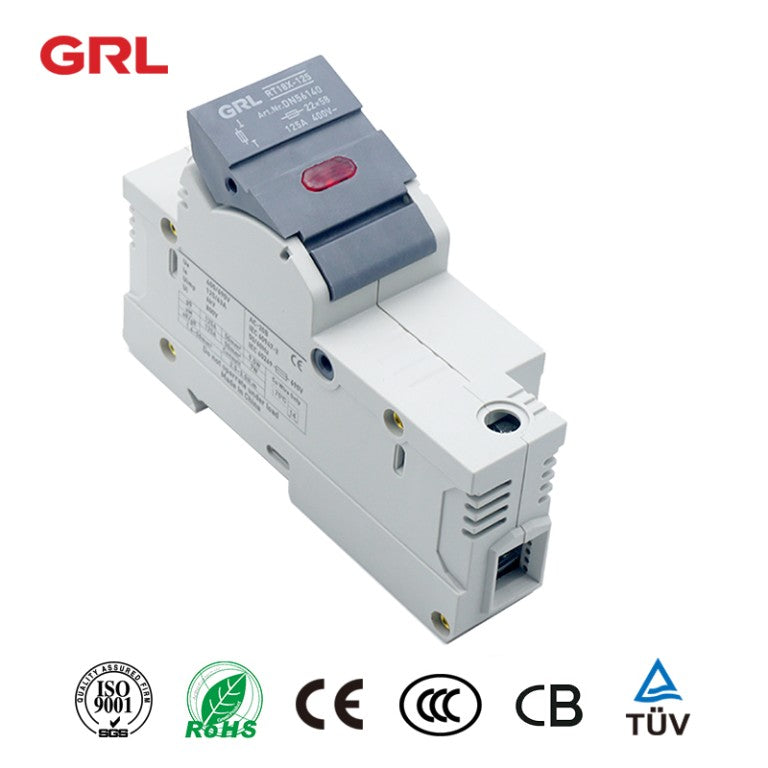

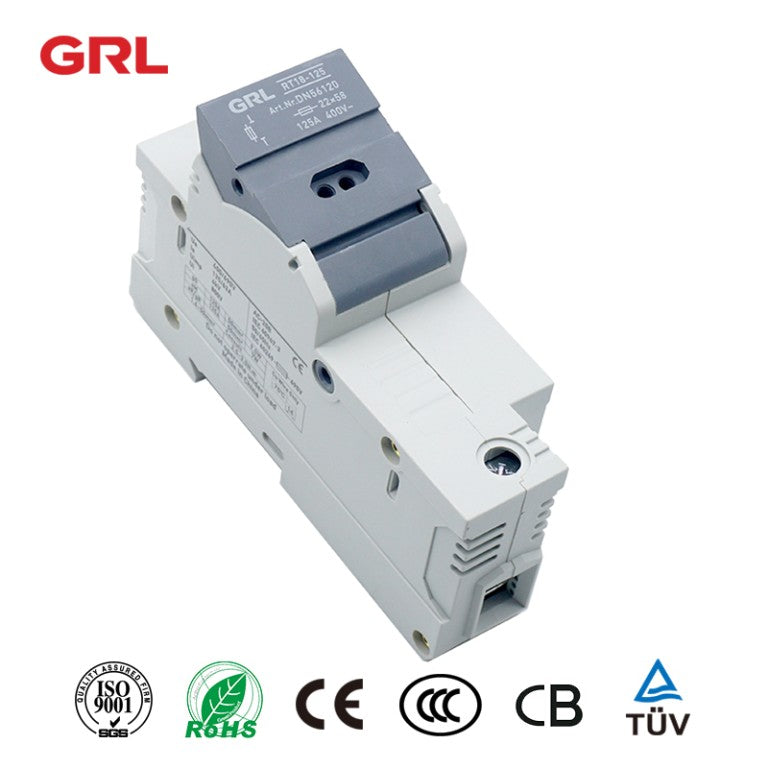

GRL RT18-125 fuse size 22*58 din rail mount fuse holder

Product model:RT18-125

Description:Fuse switch disconnector, standard structure without null line, standard structure with null line at right

Pole:1P, 1P+N, 2P, 3P, 3P+N

Mounting method:DIN rail installation

Wiring range:4-50mm^2

Fuse size:22*58

Rated operational current Ie:125A（500VAC）/100A（690VAC）

Rated operational voltage Ue：500VAC/690VAC

Rated insulation voltage：800V

Rated impulse withstand current Ipk：6kV

Breaking capacity with fuse:100kA(500VAC)/50kA(690VAC)

Utilization category with fuse:gG

IP:IP20

Reference:IEC 60269-2 GB/T 13539.2
