Fluke 1587C FC Insulation Multimeter (3-year warranty)

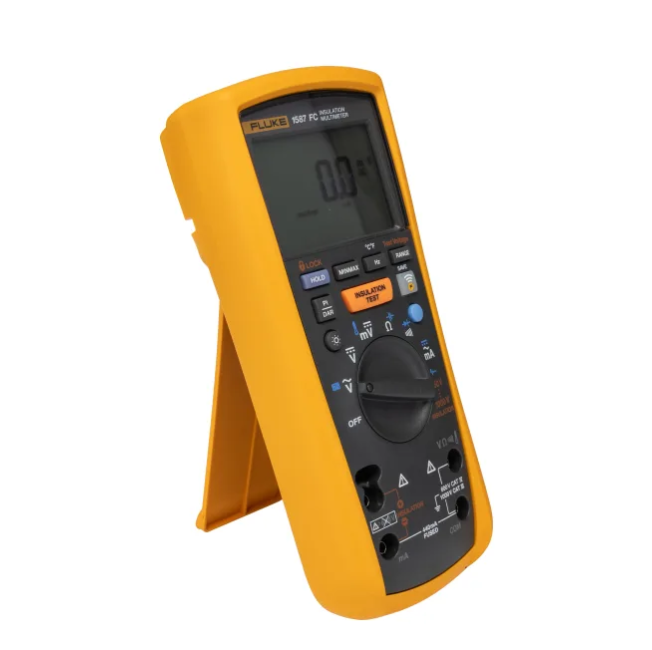

Fluke 1587 FC Advanced Electrical Troubleshooting Kit

The Fluke 1587 FC Advanced Electrical Troubleshooting Kit combines a digital insulation tester with a full-featured digital multimeter into a single, compact unit. This kit is ideal for troubleshooting motors, generators, cables, and switchgear. The Fluke Connect® compatibility allows for wireless data logging and sharing.

Key Features:

• Insulation Resistance Testing: 0.01 MΩ to 2 GΩ
• Test Voltages: 50 V, 100 V, 250 V, 500 V, 1000 V
• AC/DC Voltage Measurement: 0.1 mV to 1000 V
• AC/DC Current Measurement: 0.001 mA to 400 mA
• Resistance: 0.1 Ω to 50 MΩ
• Capacitance: 1 nF to 9999 μF
• Frequency: 0.01 Hz to 99.99 kHz
• Temperature: -40.0 °C to 200.0 °C (-40.0 °F to 392.0 °F)
• Continuity Testing: Yes
• Diode Test: Yes
• Fluke Connect® Compatibility: Wireless data logging and sharing
• IR Thermometer: Integrated for quick temperature checks
• Low Pass Filter: For accurate measurements on VFDs
• Auto Discharge of Capacitive Voltage: For user safety
• Live Circuit Detection: Prevents insulation test when voltage > 30 V is detected
• Display: Large, backlit digital display
• Automatic Shut-off: Saves battery power
• VFD low-pass filter: For accurate motor drive measurements

Specifications:

• Voltage rating: 1000V
• Insulation Test Voltages: 50 V, 100 V, 250 V, 500 V, 1000 V
• Insulation Resistance Range: 0.01 MΩ to 2 GΩ
• AC/DC Voltage Measurement: 0.1 mV to 1000 V
• AC/DC Current Measurement: 0.001 mA to 400 mA
• Resistance: 0.1 Ω to 50 MΩ
• Capacitance: 1 nF to 9999 μF
• Frequency: 0.01 Hz to 99.99 kHz
• Temperature: -40.0 °C to 200.0 °C (-40.0 °F to 392.0 °F)
• Continuity Testing: Yes
• Diode Test: Yes
• Fluke Connect®: Yes
• IR Thermometer: Yes
• Auto-discharge: Yes
• Live Circuit Detection: Yes
• Display Backlight: Yes
• Automatic Shut-off: Yes

Kit Includes:

• Fluke 1587 FC Insulation Multimeter
• Remote probe
• Test leads
• Alligator clips
• K-type thermocouple
• Hard case

Applications:

• Motor testing
• Generator testing
• Cable testing
• Switchgear testing
• Troubleshooting electrical systems
• Preventative maintenance
• HVAC systems
