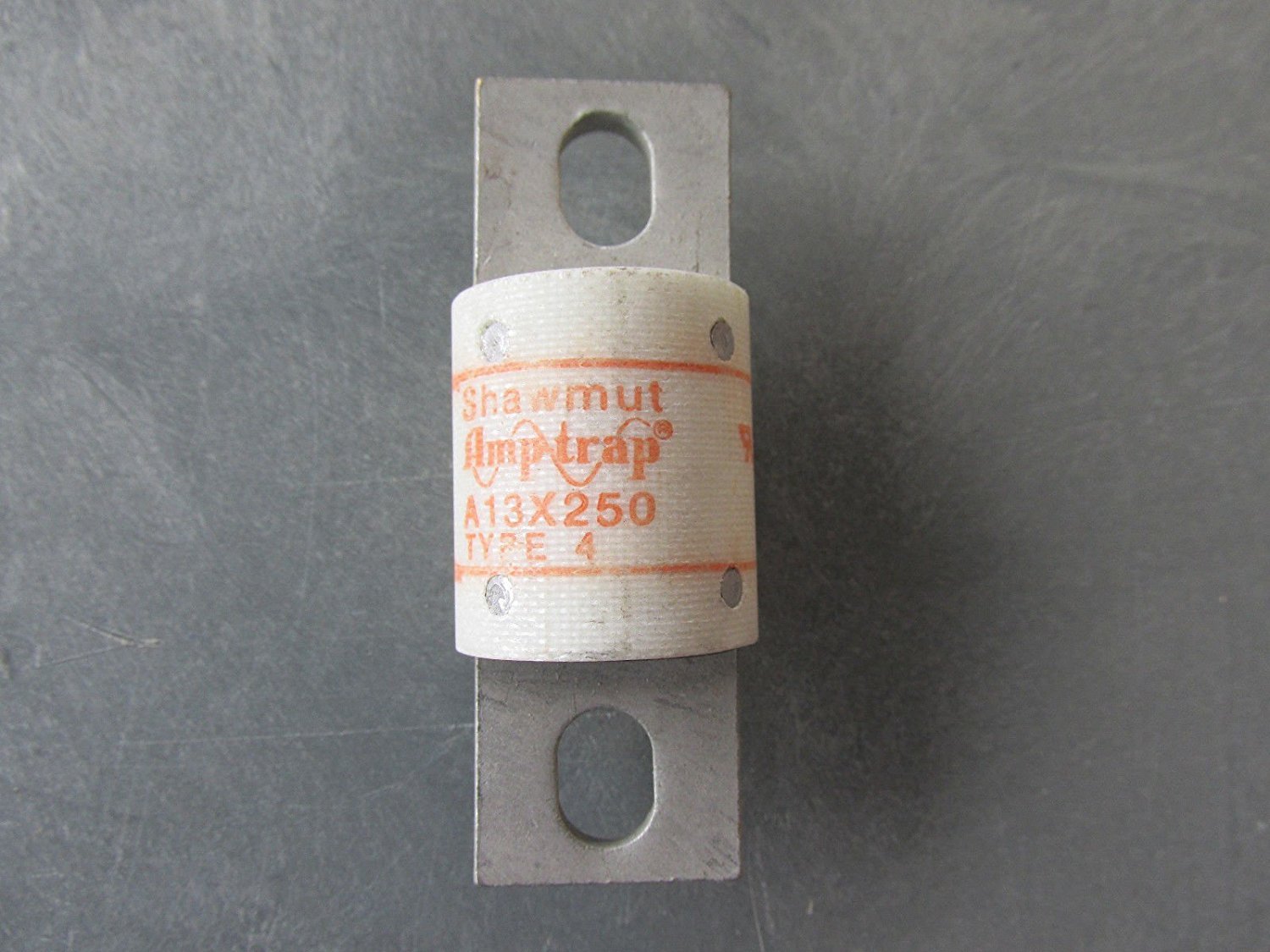

Ferraz Shawmut A13X250-4 250A 130V Fuses (10 Pieces)

Ferraz Shawmut A13X Amp-trap® Form 101 - Semiconductor Protection Fuse - 130VAC/DC

Ferraz Shawmut - High-Speed Fuse for Semiconductor Device Protection

Key Features:

• Manufacturer: Ferraz Shawmut
• Product Type: Semiconductor Protection Fuse
• Series: A13X Amp-trap® Form 101
• Voltage Rating (AC): 130 VAC
• Voltage Rating (DC): Up to 100 VDC (depending on amperage rating - see Ratings section)
• Current Rating Range (AC): 1 A to 6000 A
• Current Rating Range (DC): 70 A to 3000 A
• Characteristic: Fast-Acting, Current Limiting
• I²t (Melting): Low I²t values for minimized damage to protected semiconductors (Refer to I²t Data table for specific values)
• Breaking Capacity (Interrupting Rating - AC): 8 kA RMS Symmetrical
• Breaking Capacity (Interrupting Rating - DC): 10 kA or 20 kA (depending on amperage range - see Ratings section)
• Approvals:
  • UL Recognized Component
  • AC: UL Guide No. JFHR2 (1-25A, 70-2000A)
  • DC: Tested to UL Standard 198L parameters (70-3000A)
• Mounting Options: Ferrule, Midget Dimensions Ferrule, Blades (Bolt-in), Hockey Puck (Bolt-in)
• Indicator Options: Trigger Indicator (TI), Trigger Actuator (TA), Integral Blown-Fuse Indicator (refer to catalog numbering system for availability)
• Applications: Protection of diodes, thyristors, transistors, and other semiconductor devices; Electrochemical Rectifiers; Heavy Duty Devices
