ELECTRONICON E62.R16-104M30 Capacitor (4 Pieces)

ELECTRONICON E62.R16-104L30/J Three-Phase Capacitor - 3x100µF, 640VAC

ELECTRONICON - Three-Phase Film Capacitor for AC Applications

Key Features:

• Manufacturer: ELECTRONICON
• Product Series: E62.R16 (Corrected from previous assumption - the image clearly shows R16)
• Part Number: E62.R16-104L30/J
• Capacitor Type: MKP (Metallized Polypropylene Film) - Clearly stated on the label.
• Phase Configuration: Three-Phase (3-Phase)
• Rated Capacitance: 3 x 100 µF (Microfarads) (100µF per phase)
• Rated Voltage (UN): 640 VAC
• RMS Voltage (Urms): 450V
• Capacitance Tolerance: -5...+5%

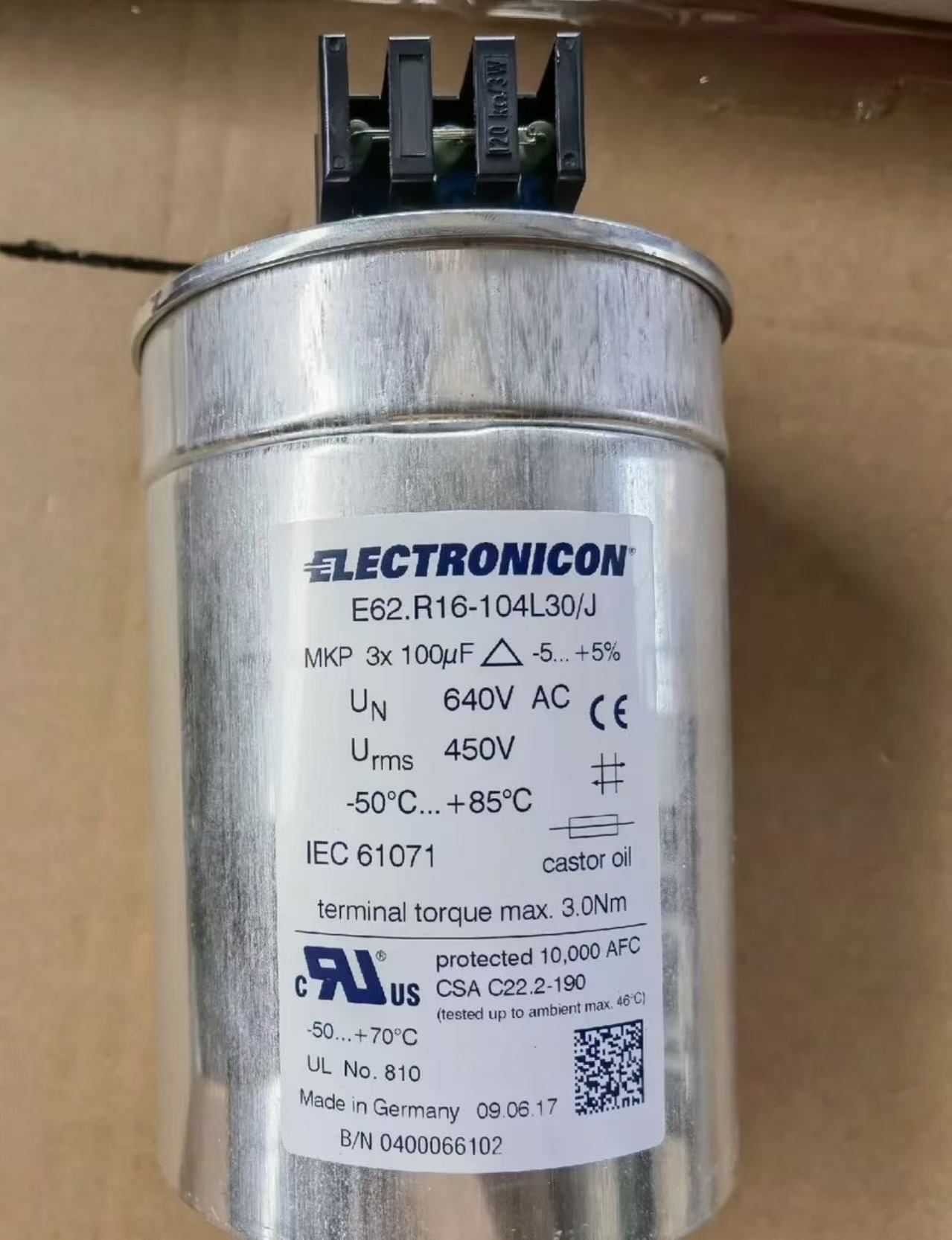

• Connection Type: Screw Terminals (with integrated discharge resistors) - Visible in the image.
• Mounting Style: Cylindrical Can with Stud Mount (likely) - Deduced from the shape; a threaded stud might be on the bottom, not visible in the image.
• Operating Temperature Range:-50°C...+85°C
• Application:
  • AC Filtering
  • Power Factor Correction (PFC)
  • Reactive Power Compensation
  • Frequency Converters / Inverters
  • Motor Control
  • Industrial Power Electronics
