EATON FWP-3A14Fa 3A 700V Fuses (24 Pieces)

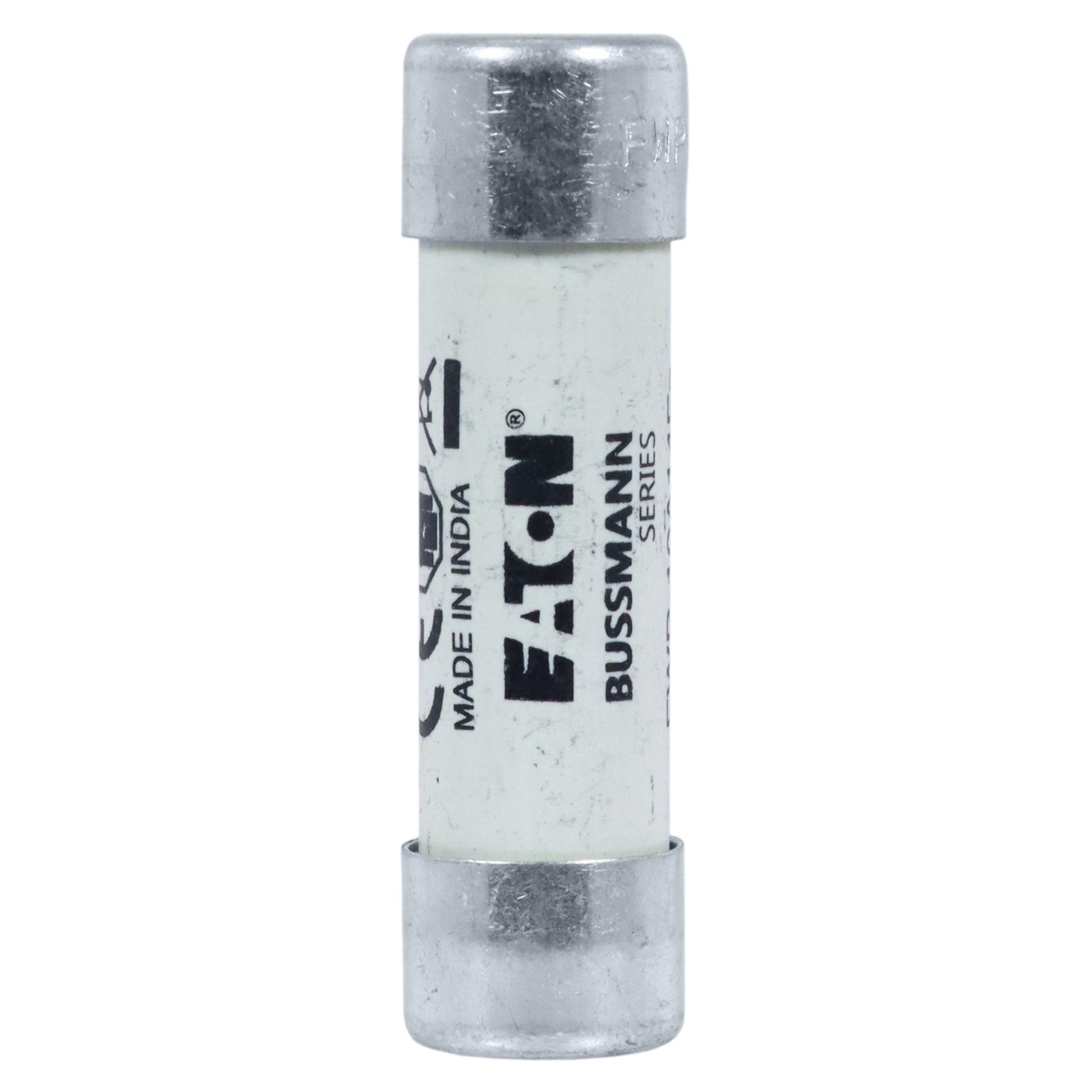

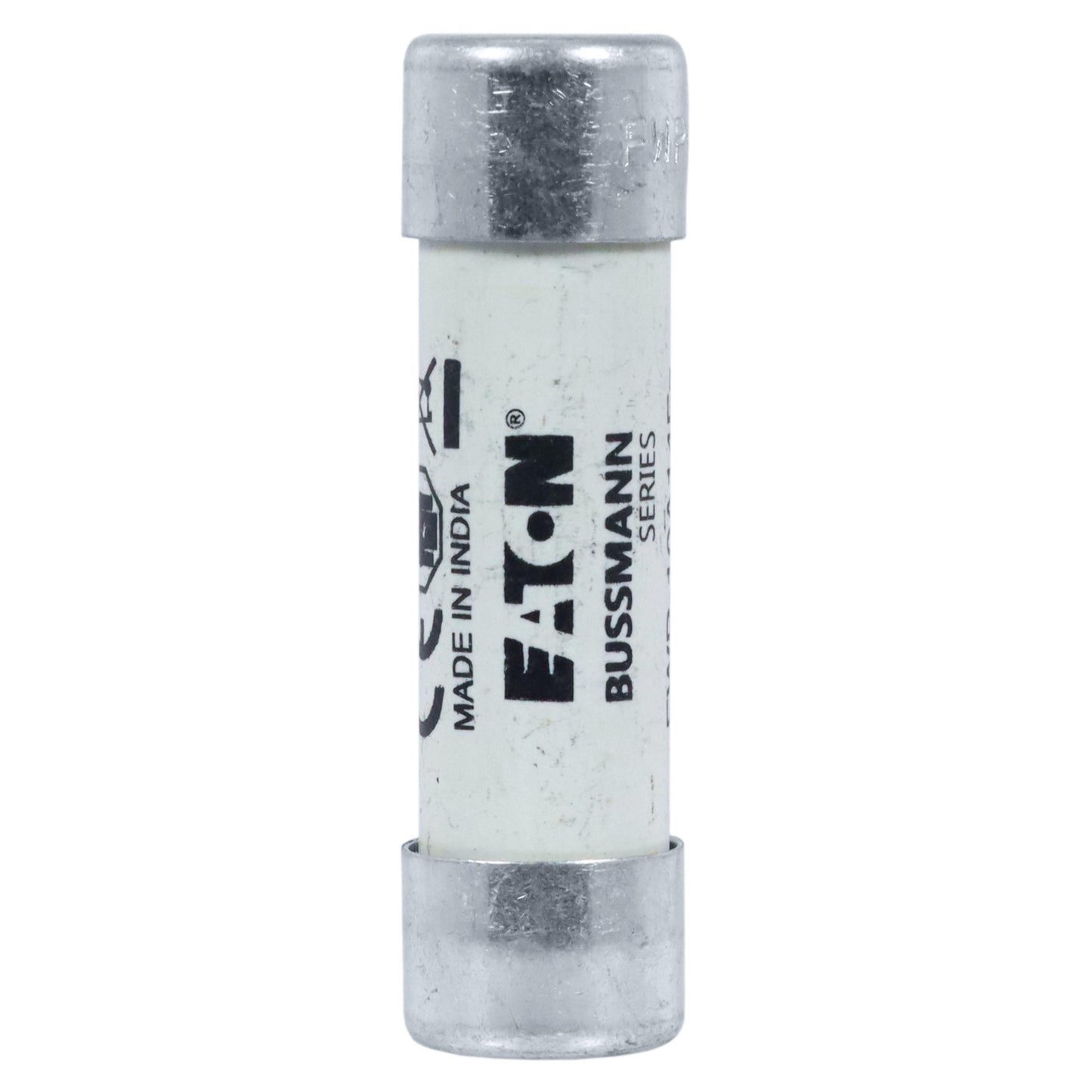

Eaton Bussmann series FWP-3A14F High-Speed Fuse

Specifications:

• Catalog Number: FWP-3A14F
• Fuse Type: High-Speed Semiconductor Fuse
• Class: Class aR
• Current Rating: 3 A
• Voltage Rating: 700 Vac, 700 Vdc
• Interrupting Rating:
  • 200 kAIC at 700 Vac
  • 50 kAIC at 700 Vdc
• Clearing I²t (at 700 Vac): 0.5 A²s
• Watt Loss (at rated current): 1.6 W
• Dimensions: 14 x 51 mm
• Body Material: Ceramic
• Termination: Ferrule end x Ferrule end
• Mounting: For use with fuse clips or blocks suitable for 14x51mm fuses
• Compliance: UL Recognized (File E76491), CSA Certified (File LR29862), CE Marked, RoHS Compliant
