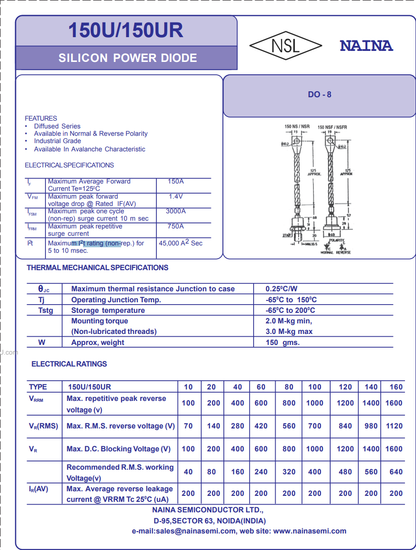

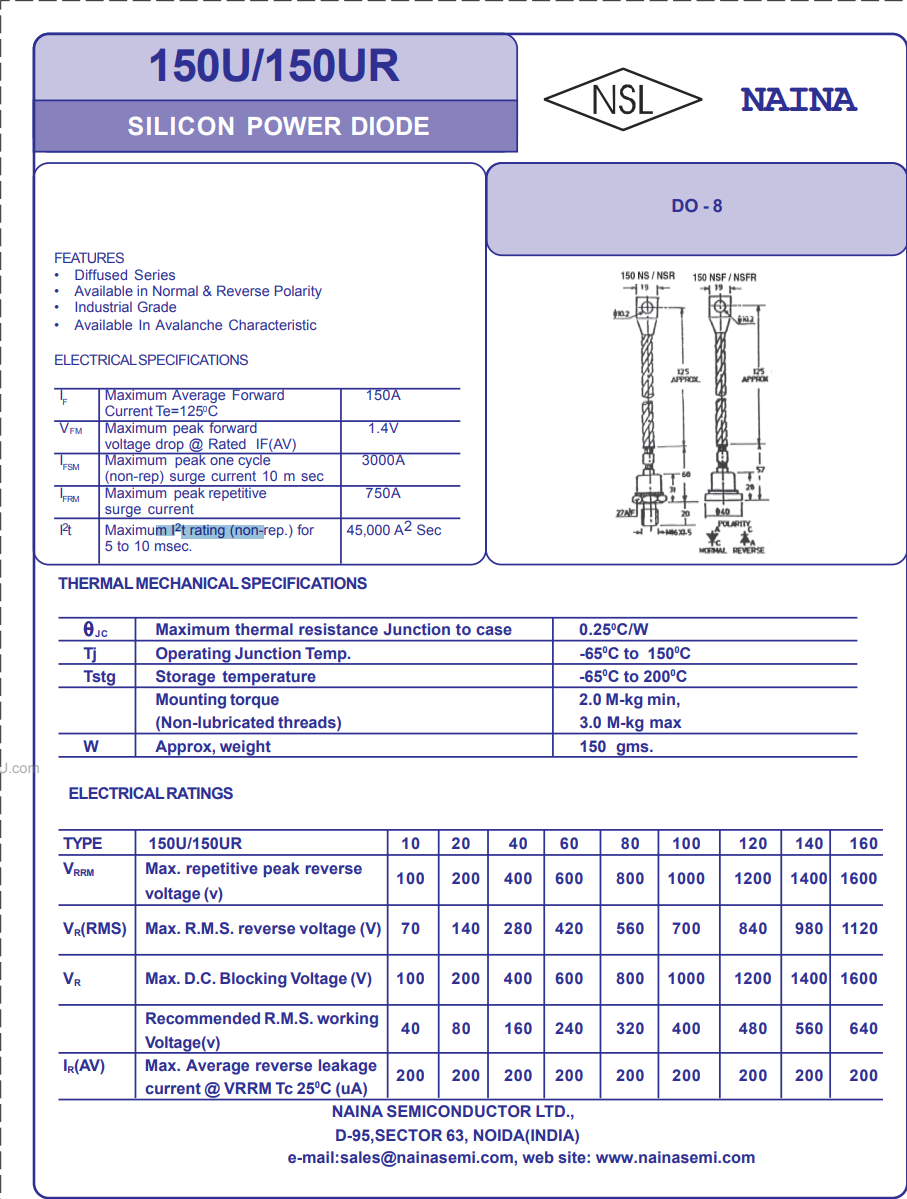

150U/150UR SILICON POWER DIODE DO - 8 FEATURES • Diffused Series • Available in Normal & Reverse Polarity • Industrial Grade • Available In Avalanche Characteristic ELECTRICAL SPECIFICATIONS IF V FM IFSM IFRM I2t Maximum Average Forward Current Te=1250C Maximum peak forward voltage drop @ Rated IF(AV) Maximum peak one cycle (non-rep) surge current 10 m sec Maximum peak repetitive surge current Maximum I2t rating (non-rep.) for 5 to 10 msec. 150A 1.4V 3000A 750A 45,000 A2 Sec NAINA THERMAL MECHANICAL SPECIFICATIONS θ JC Tj Tstg W
