CHUNZ 600V 1200V Bridge Rectifier Controllers - 4ZQ10A 4ZQ15A 4ZQ20A 4ZQ30A

CHUNZ offers industrial-grade bridge rectifier controllers for reliable AC to DC conversion. Available in 600V and 1200V input voltage ranges, these compact controllers feature glass passivated diodes and aluminum heat sinks to handle up to 30A loads.

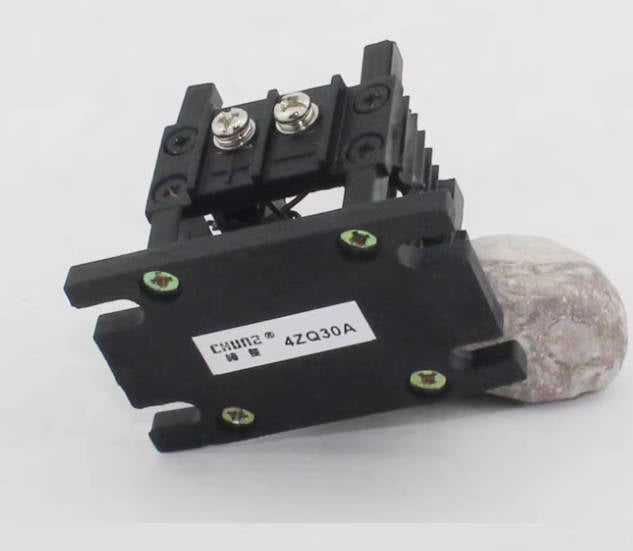

This series comes in 4 models - 4ZQ10A, 4ZQ15A, 4ZQ20A and 4ZQ30A with output current ratings from 10A to 30A.

Key Features:

• Input Voltage Range: 600VAC or 1200VAC
• Glass Passivated Bridge Rectifier Diodes

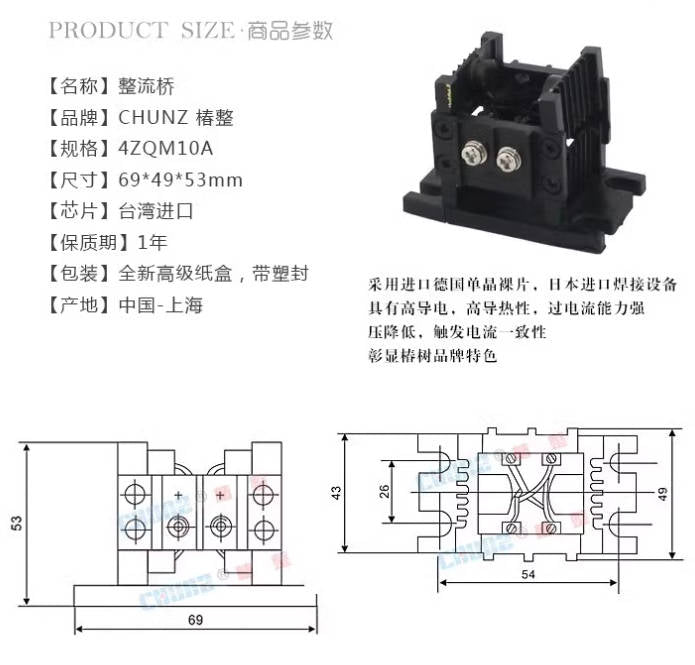

• Aluminum Alloy Heat Sinks - 69x49x53mm
• Overload and Short Circuit Protection
• LED Operation Indicator

Output Current Ratings:

With compact heat sinks sized at 69x49x53mm, these controllers feature robust construction to deliver reliable AC to DC power conversion up to 30A/25A on 600V and 1200V models respectively.

Approved for CE and RoHS standards. Select the appropriate model based on your input voltage and load current requirements for industrial applications. The optimized heat sink design allows efficient thermal dissipation.
