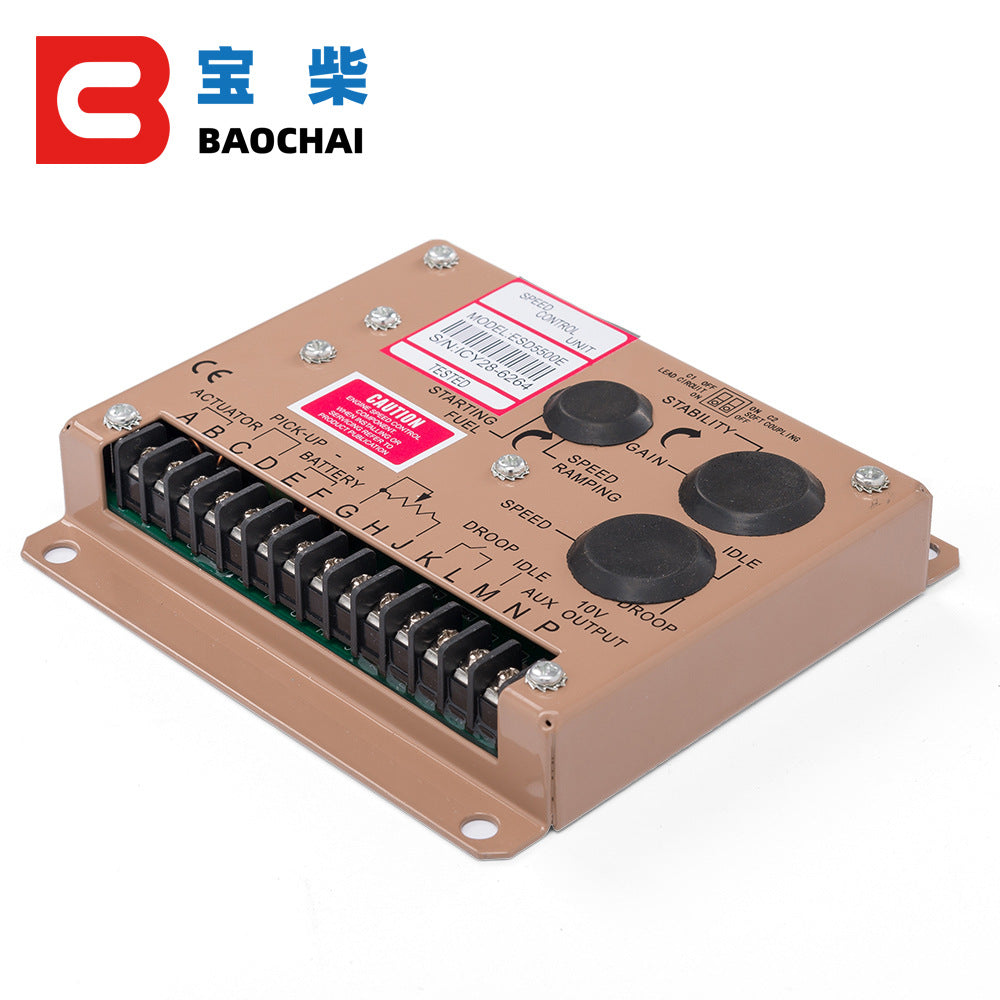

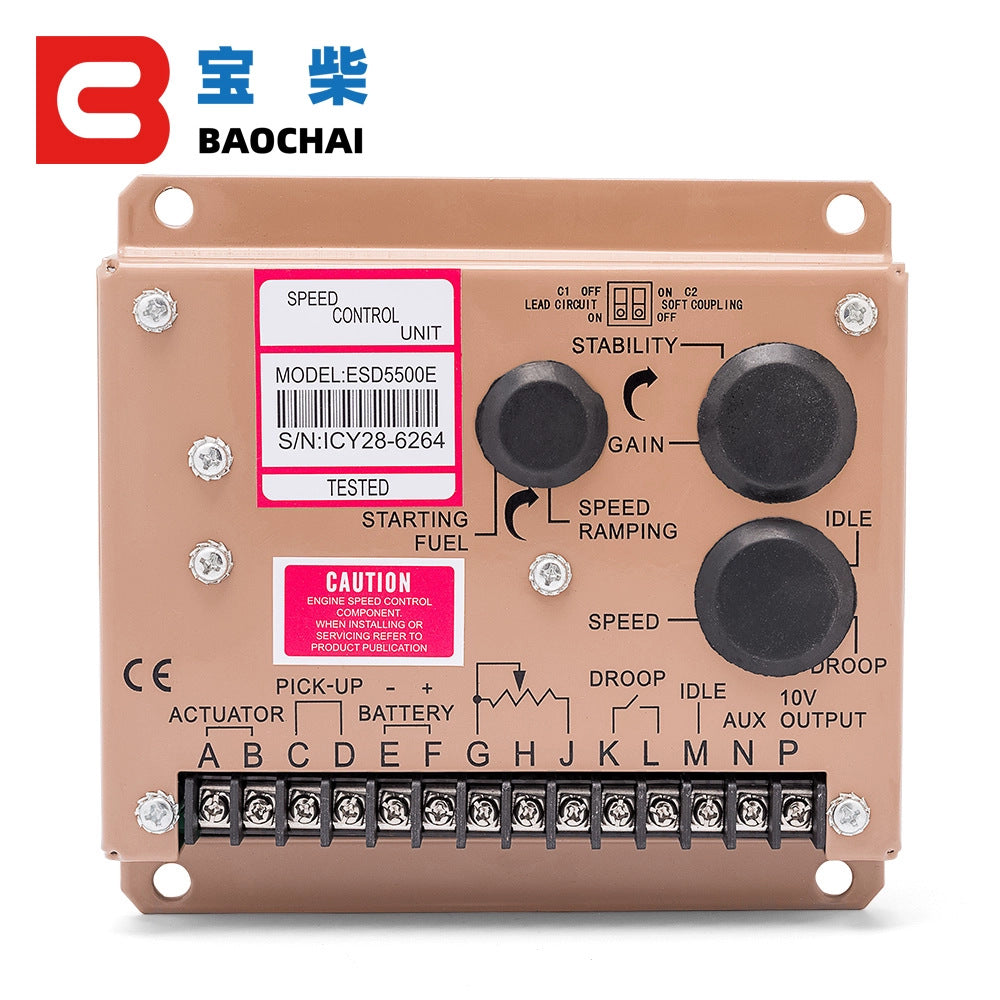

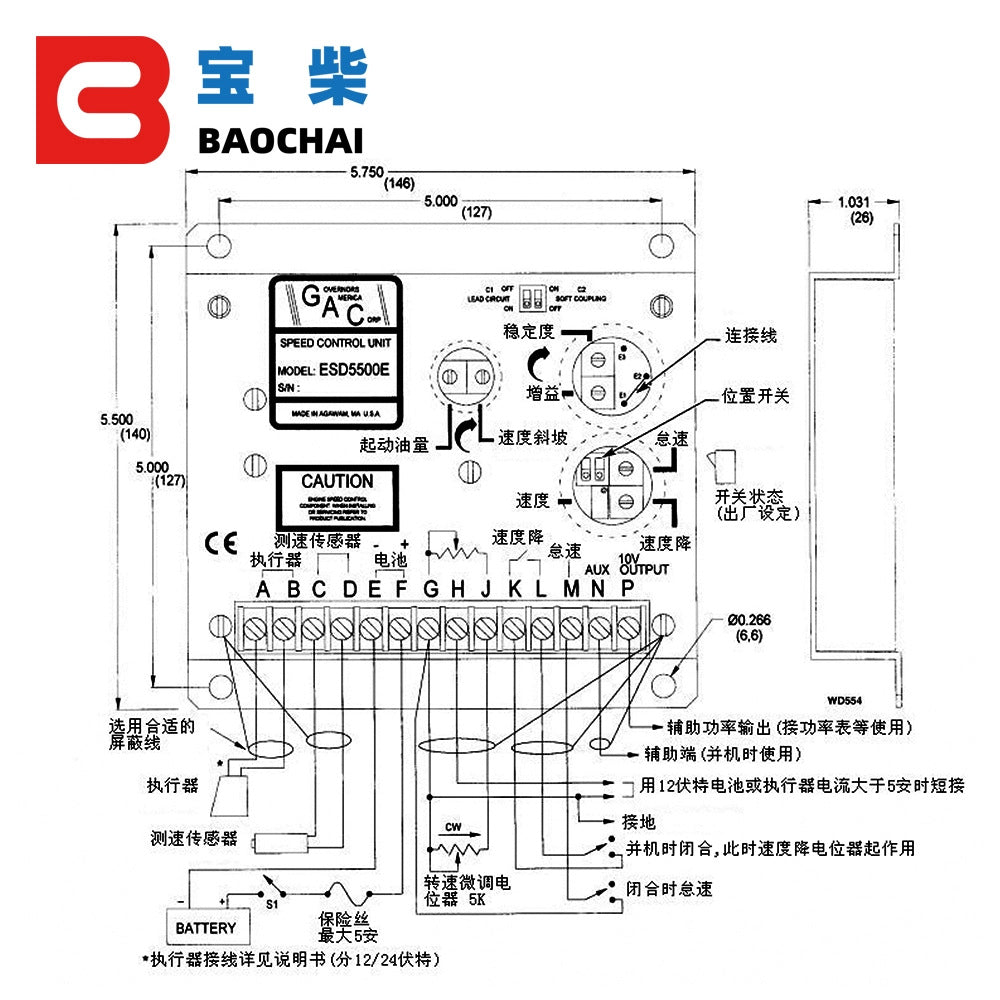

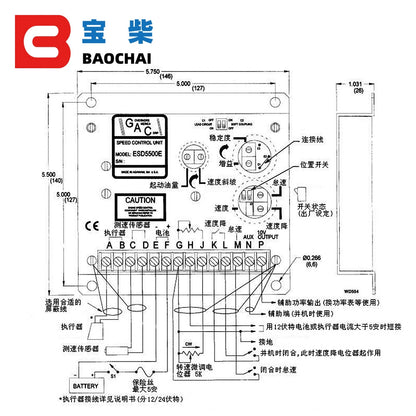

BAOCHAI GAC ESD5500E DC Electronic Governor Diesel Genset Speed Controller

Technical rules
Speed stability: better than ±0.25%
Speed range: 1KHZ-7.5KHZ
Thermal Stability: ±1% max.
IDLE regulation: 160±20HZ - 95% of rated speed

DROOP regulation::Minimum position 15HZ±6HZ/per amp load current change Maximum position 400HZ±75HZ/per amp load current change

External Speed Adjustment: ±200HZ (External 1KΩ )

AUX INPUT SENSITIVITY:148HZ/1V;10HZ;1MΩ impedance

START FUEL Adjustment:160 earth 20HZ 70% of rated speed.

RAMP time adjustment: 1.5-20SEC

10V output current max: 20MA

Ambient
Operating temperature range: -40°C-85°C

Operating humidity range: 95% max.
Storage temperature: -55C-90C
Vibration: 20-100HZ 500MM/SEC


Input power supply
Supply voltage: 12V and 24V DC battery system
Grounding polarity: negative
Power consumption: 50MA
Actuator continuous current: min 2.5A;max 10A

Speed sensor signal: 0.5-120RMS

Note: The above performance parameters are measured at an operating frequency of 4000HZ.
