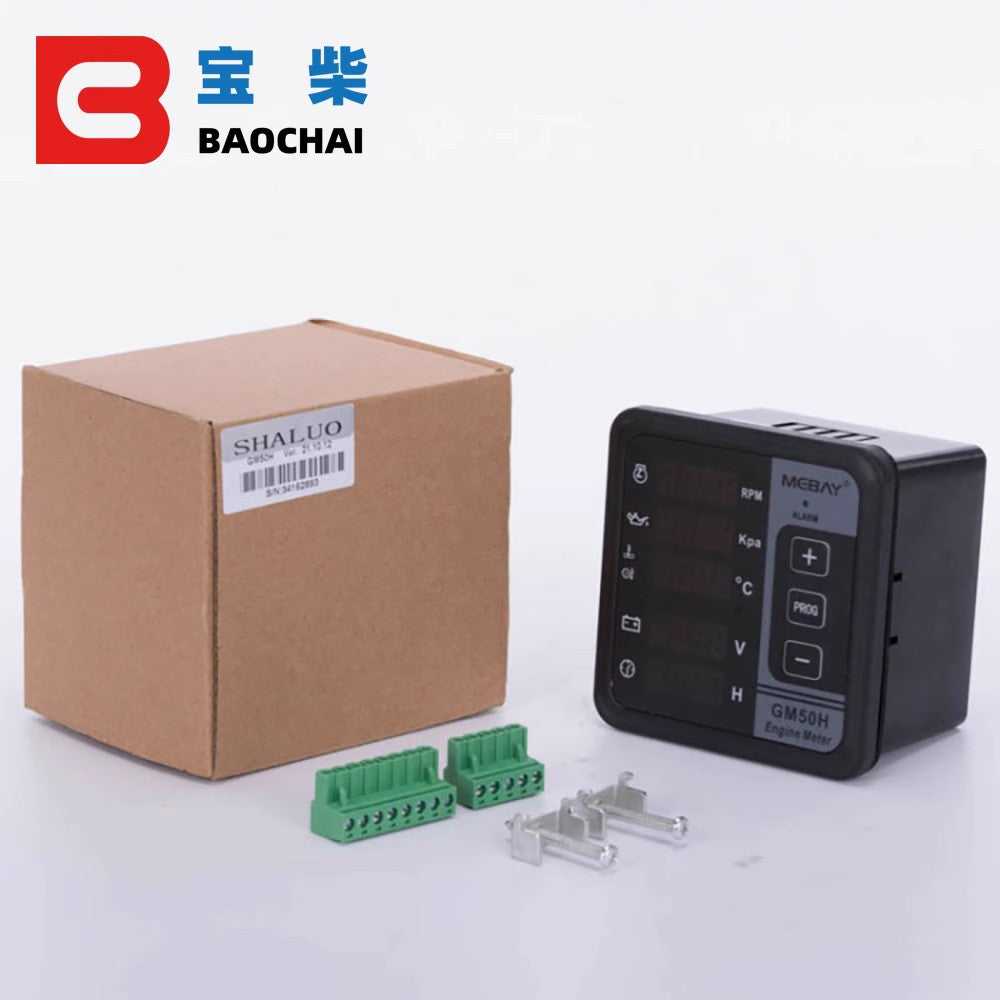

BAOCHAI GM50H Generator Controller

GM50H MKII Engine Digital Display

Module Overview

The GM50H MKII is a lightweight, low-cost module for measuring and displaying engine RPM, water temperature, oil temperature, oil pressure, battery voltage, and engine runtime totalization. Parameters can be adjusted and set via pushbuttons to meet the needs of different applications. In addition, European style terminal wiring is adopted to facilitate the installation, removal and replacement of the module.

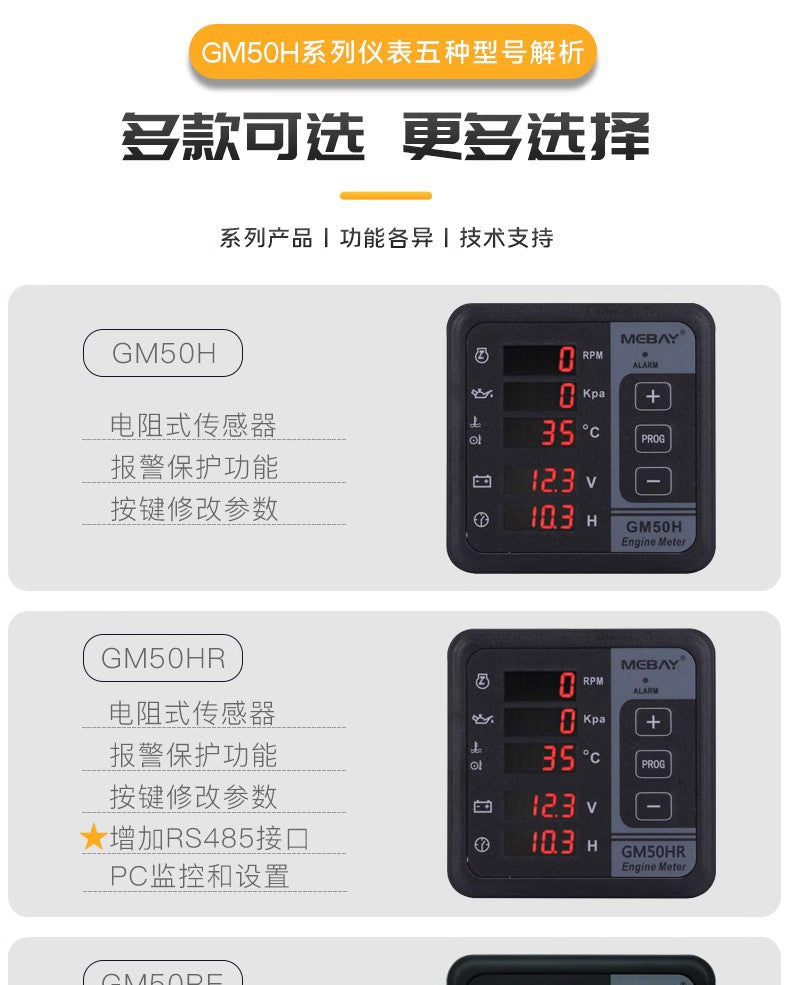

The GM50H MKII series instruments are available in five models:

GM50H MKII: Collecting engine parameters through resistive sensors, with alarm protection function, and modifying parameters through pushbuttons;

GM50HR: on the basis of GM50H, add RS485 interface, can monitor engine parameters and set running parameters through PC software;

GM50C: read engine parameters through CAN interface and built-in J1939 protocol, with alarm protection function, and modify parameters by pressing keys;

GM50CR: add RS485 interface on the basis of GM50C, it can monitor engine parameters and set running parameters through PC software, and can connect with remote copy meter to view parameters;

GM50RE: remote copy instrument, used to connect with GM50H series instrument with RS485 interface, to realize remote parameter monitoring, a copy instrument to monitor a host.

One secondary instrument can monitor one main unit. Function Characteristics

1.? With a variety of protection functions

2.? Conversion of power generation frequency to rotational speed

3.? Built-in a variety of sensor curves can be selected

4.? Customizable sensor parameter curve

5. Highly illuminated digital tube displays the measured value

6.? English and symbolized indication

7. Setting and modification of system parameters by panel buttons

Parameter display.

1. Engine speed; 2. Engine oil pressure 3. Engine oil temperature; 4. Engine cooling water temperature; 5. Battery voltage;

6. Accumulated working time.

Protection function

1. Engine overspeed protection; 2.? Low oil pressure protection; 3. High oil temperature protection; 4. High water temperature protection; 5.? Low battery voltage alarm.

Measurement range and precision

1.? Accuracy of RPM measurement: Error ≦±1% (within the range);

2.? Accuracy of oil pressure measurement: 0-1100KPA, error ≦±2.5%;

3.? Water temperature measurement accuracy: 10-120 degrees Celsius, error ≦±2.5%;

4.? Oil temperature measurement accuracy: 10-150 degree Celsius, error ≦±2.5%. 5;

5.? Battery voltage measurement accuracy: error ≦±1% (within the range);

6.? Accumulated time range: 0-9999 hours;

Specification

Power supply: DC8～36 V

Power consumption: MAX: 1 W

Sensor input resistance:0～1000 Ohm

RPM input signal frequency range: Freq 300Hz～15kHz

RPM input signal amplitude range: AC 3～16V

Input power generation frequency: Freq 45 to 70Hz

Input power generation voltage: AC40～280V

Alarm output: Negative output, maximum DC1A

Operating ambient temperature: -20～65℃;

Storage ambient temperature: -40～85℃;

Protection level: IP54 (front panel after installation);

Overall dimensions (W * H * D): 100mm * 100mm * 77mm

Opening size (W * H): 91mm * 91mm;

Weight: 150g
