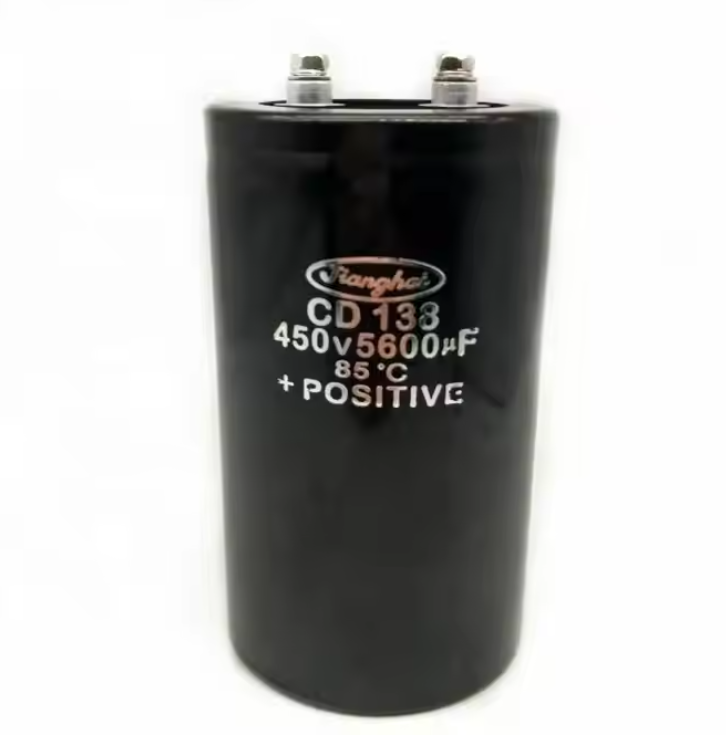

JiangHai CD138 450V 5600uF Capacitor (12 Pieces)

Jianghai CD138 PC Series Aluminum Electrolytic Capacitor - ECG2WPC562MEl55

Key Features:

• Long Life
• High Reliability
• RoHS Compliant

Applications:

• High Current Circuits for Professional Equipment
• Power Applications and Inverters

Electrical Characteristics:

• Rated Voltage: 450V DC (Surge Voltage: 500V DC)
• Capacitance: 5600µF
• Capacitance Tolerance: ±20%
• Operating Temperature Range: -40°C to +85°C
• Leakage Current (20°C): ≤ 0.01CV or 5mA (whichever is smaller)
• Dissipation Factor (tanδ) (20°C, 120Hz): ≤ 0.15
• Capacitance Stability at Low Temperature (-25°C, 120Hz): ≥ 0.7 (C_-25°C / C_+20°C)
• ESR (20°C, 120Hz): Max 38 mΩ (Typ 13 mΩ)
• Rated Ripple Current (85°C, 120Hz): 18.3 Arms

Mechanical Characteristics:

• Dimensions (Diameter x Length): Φ77mm x 155mm
• Terminals: Screw Terminals
• Mounting Style: Bracket Mounting

Life Performance:

• Useful Life (85°C): > 100,000 hours
• Load Life (85°C, Rated Voltage & Ripple Current): 5000 hours
• Endurance Test (85°C, Rated Voltage): 5000 hours
• Shelf Life (85°C, No Voltage Applied): 1000 hours
